ThermoSil Pads #24

Explore our high-quality industrial material solutions

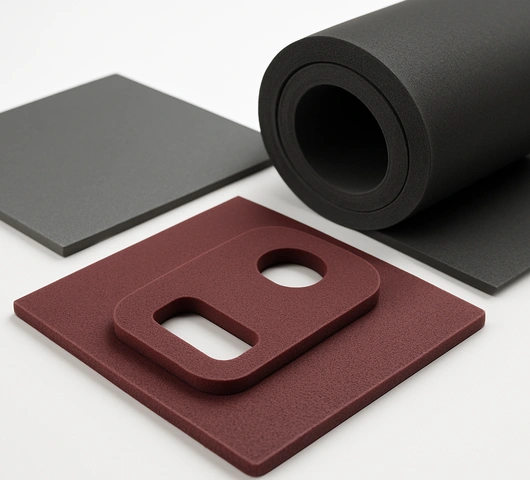

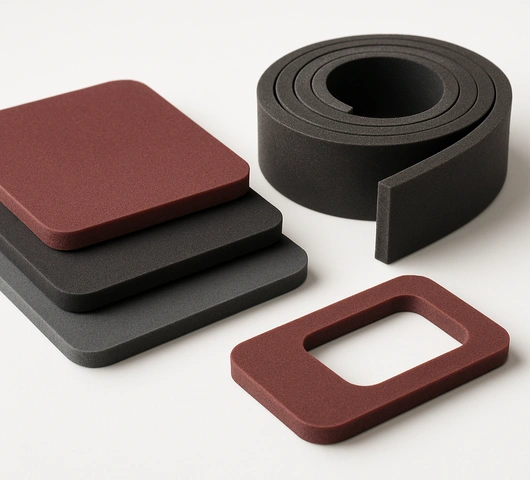

*Image for reference only, not the actual product.

ThermoSil Pads #24 Medium Stress Foam Silicone

ThermoSil Pads #24 is a medium-stress foam silicone material with low density, designed for sealing, cushioning, and fire resistance applications in harsh environments, operating from -55°C to 200°C.

Categories: Silicone Products/Foam Silicone/Thermal Insulation Materials
Size: Customizable
Thickness: Customizable
Color: Customizable
Remarks: For comprehensive physical property specifications and detailed technical information about ThermoSil Pads #24, please contact our technical support team.
Email Inquiry Online Inquiry
Tags:
foam silicone thermal insulation flame retardant

Send your inquiry and we will reply within 24 hours


Product Description
ThermoSil Pads #24 is a specialized medium-stress foam silicone material engineered for demanding industrial applications. With its low density structure, this advanced material delivers exceptional performance in sealing, cushioning, and fire resistance scenarios across extreme environments. Designed to maintain reliable functionality in temperature ranges from -55°C to 200°C, it offers outstanding flame retardancy (UL94-V0 certified), excellent compression set resistance (less than 5.0%), and high electrical insulation properties (dielectric strength ≥2.5kV/mm). The material's thermal conductivity of 0.08±0.01W/(m·K) provides excellent thermal insulation, while its compliance with RoHS, REACH, and ELV standards ensures environmental sustainability for critical industrial applications.
Product Features
  • Exceptional operating temperature range from -55°C to 200°C for extreme environment applications
  • High flame retardancy, certified to UL94-V0 standards for safety-critical installations
  • Excellent compression performance with 75±20kPa force at 25% deformation
  • Low compression set of less than 5.0%, ensuring long-term dimensional stability
  • Outstanding electrical insulation with dielectric strength ≥2.5kV/mm
  • High volume resistivity ≥1.0×10¹⁴Ω·cm for electrical safety applications
  • Thermal conductivity of 0.08±0.01W/(m·K) providing effective thermal insulation
  • Low water absorption rate (less than 5.0%) for moisture-sensitive environments
  • Maintains excellent flexibility even at extremely low temperatures (-55°C)
  • Environmentally compliant with RoHS, REACH, and ELV standards
    • Applications
  • Transportation equipment sealing and insulation applications
  • Communication and electrical enclosure gaskets and seals
  • Electronic component cushioning and protection
  • Thermal insulation barriers in industrial machinery
  • Vibration dampening in precision equipment
  • Fire-resistant sealing solutions for safety-critical systems
  • Electrical insulation in high-voltage applications
  • Weather-resistant sealing in outdoor installations
  • Gap filling in irregular or complex assemblies
  • Noise reduction applications in industrial environments
    • Additional Information
    ThermoSil Pads #24 can be custom fabricated to meet your specific application requirements. We offer precision die-cutting, water jet cutting, and CNC fabrication services to deliver exact dimensions and shapes needed for your projects. Our engineering team can assist with material selection, design optimization, and prototyping to ensure optimal performance. Minimum order quantities apply based on specification requirements. Contact our technical support team for detailed material data sheets, custom fabrication options, and application-specific recommendations.
