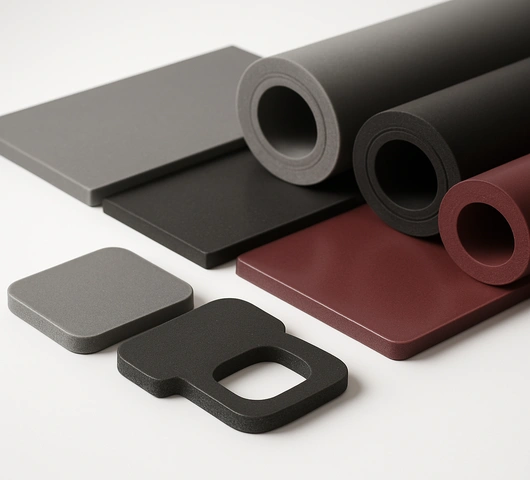

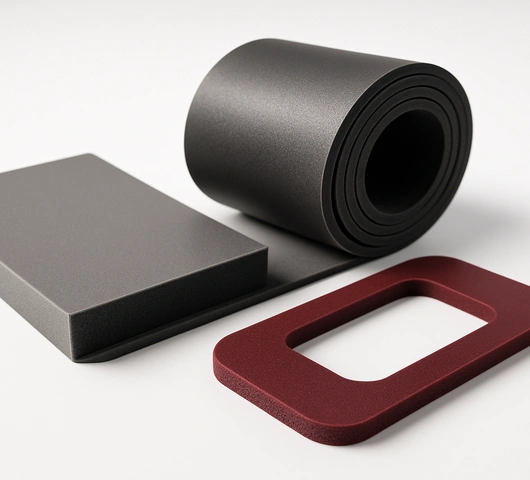

ThermoSil Pads #28

ThermoSil Pads #28 represents a breakthrough in organic silicone foam technology, offering exceptional performance characteristics in a low-density material. This premium silicone foam excels in compression set resistance and features remarkable temperature tolerance from -55°C to 200°C, significantly outperforming traditional carbon-based foams. With UL94 V-0 flame retardancy certification, it provides superior fire safety in critical applications. The material's outstanding aging resistance and weatherability make it ideal for long-term installations in challenging environments. ThermoSil Pads #28 delivers consistent performance across various technical parameters, including 25% compression force of 145±30kPa, compression set at 100°C of ≤5.0%, and tensile strength of ≥0.5MPa. Available in black and gray with multiple surface treatment options, this environmentally compliant material has passed RoHS, REACH, and ELV testing.

Exceptional temperature resistance range from -55°C to 200°C

Superior flame retardancy with UL94 V-0 certification

Low density of 0.5±0.04g/cm³ with excellent compression properties

High tensile strength (≥0.5MPa) and elongation rate (≥90%)

Compression set at 100°C of ≤5.0%, ensuring long-term resilience

25% compression force of 145±30kPa for reliable performance

Available with various surface treatments including smooth, matte, and PET film options

Strict dimensional tolerance control across all specifications

Environmentally compliant with RoHS, REACH, and ELV standards

Excellent electrical insulation and thermal conductivity properties

Vibration dampening in precision industrial equipment and machinery

Cushioning and shock absorption in electronic devices and components

Thermal insulation in high-temperature applications up to 200°C

Sound isolation in acoustic management systems

Protective padding in transportation and packaging of sensitive items

Electrical insulation in power electronics and control systems

Fire barriers in buildings and transportation vehicles

Gaskets and seals in extreme temperature environments

Support structures in aerospace and automotive applications

Weather sealing in outdoor installations and equipment
